Moving Quill Horizontal Boring Mills

horizontal_machining_centers
HB-70

HB Series

High Performance Boring Mills

  • 20" bar type spindle
  • High performance cutting
  • Fast set-up and operation
  • Rugged box way construction

HB-70

70" x 55" (72") x 36" (46")


HB-120

120" x 55" (72") x 50"

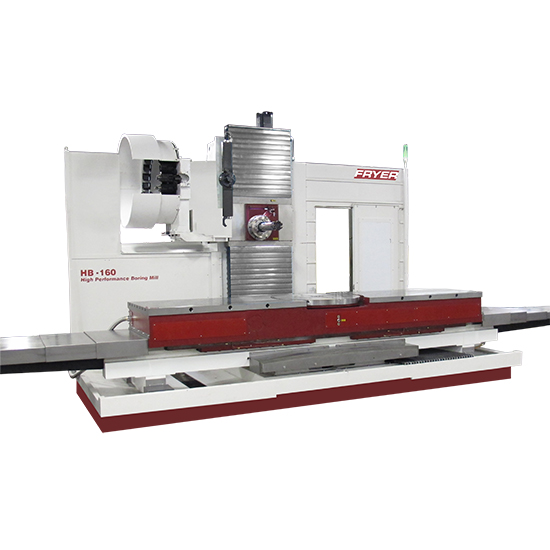

HB-160

160" x 55" (72") x 50"

REQUEST INFO

Overview

Fryer's HB Series Boring Mills are heavy duty machines designed for high precision machining. Equipped with a 20" travel bar type spindle and a powerful 40 HP spindle motor. Rugged box way construction and high precision ballscrews ensure high performance cutting and high accuracy tolerances. The user friendly Fryer - Siemens CNC allows shop floor programming for single piece runs or G code programming for high production.

FEATURES

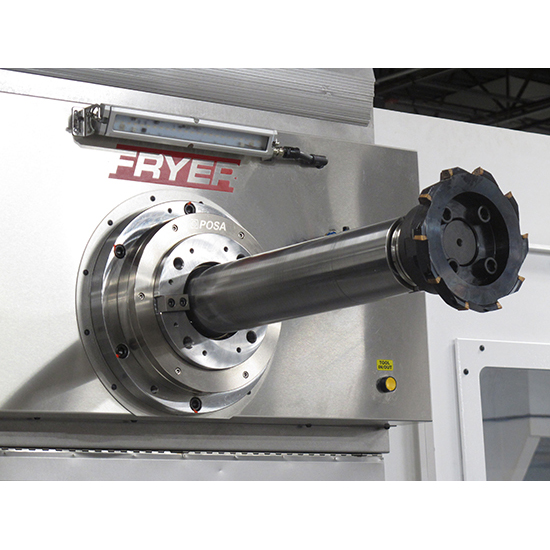

  • 50 taper bar type spindle 4.33" diameter
  • 20" travel bar fully programmable - W axis
  • 3,000 RPM spindle speed
  • 40 HP spindle with 360 ft/lbs of torque
  • 24, 40, or 60 tool arm-type ATC
  • Standard coolant thru spindle

PRODUCTIVITY

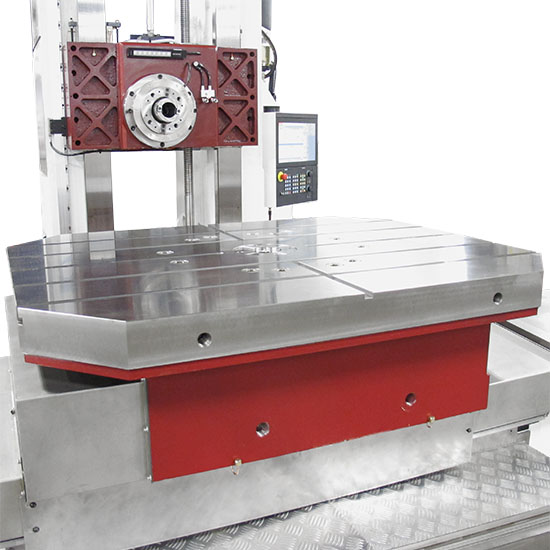

  • Built-in rotary table allows multi-side machining
  • Simple menu programming
  • Fast set-up keys and manual operation
  • Excellent for small lots
  • Easy access for large part loading
  • Rugged 4-box way construction
Previous Next

CNC Control

Overview

The Fryer – Siemens Touch 2200 CNC provides world class technology and ultra-advanced features in an intuitive user interface. This state of the art platform provides the ultimate for 5 axis, high speed machining, horizontal machine and turning applications alike. Fast set-up cycles, one button hot keys and built in probe cycles speed the set-up process. Shop floor programming, G code programming, large program storage and Ethernet connectivity speed the programming process. 3D solid model graphic verification, handwheel run and easy interrupt speed the first article process.
cnc_control

FEATURES
  • One touch set-up cycles
  • Shop floor programming system
  • G code programming editor
  • Advanced graphic simulation
TECHNOLOGY
  • Advanced Digital Control System
  • Regenerative drive technology (saves 40% electric)
  • Absolute encoders – no homing needed
  • High accuracy contouring and surfacing

The tool management page stores your tool information in a graphical format. In addition, tools can be given tool numbers or actual names like .500 drill or .375 CBD end mill. Each tool can be managed for wear and switched automatically when the tool run time is reached.
cnc_control
The standard part probe cycles use a simple GUI to make part set-up simple. The cycles include edge find, part skew, pocket, boss and many more. The cycles can also be used to measure the part and display dimensions on the screen, much like a CMM.
cnc_control

The High-Speed Machining option lets you select 3 settings for the velocity, accuracy or surface quality to produce the workpiece at extremely high speed. Includes 500 block look ahead and 1 millisecond block processing.
cnc_control
After the part is programmed it can be simulated to show the operations and tool paths. Simulation will also work with programs brought in from a CAM system that were output in G code. Cycle time is displayed also.
cnc_control


Please download our CNC Control brochure for more detailed information.
