High Speed Machining Centers

vertical_machining_centers
MC-40L

MC-L Series

Linear Way High Speed Machining Centers

  • Roller type linear ways
  • 30 tool ATC
  • 40 taper Big Plus – 10,000 RPM
  • Fast 1,450 rapids

MC-24L

24” x 16” x 17”

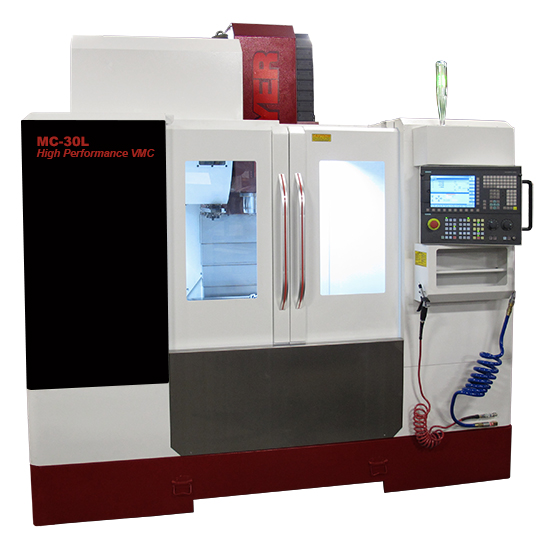

MC-30L

30” x 22” x 21”


MC-40L

40” x 22” x 22”

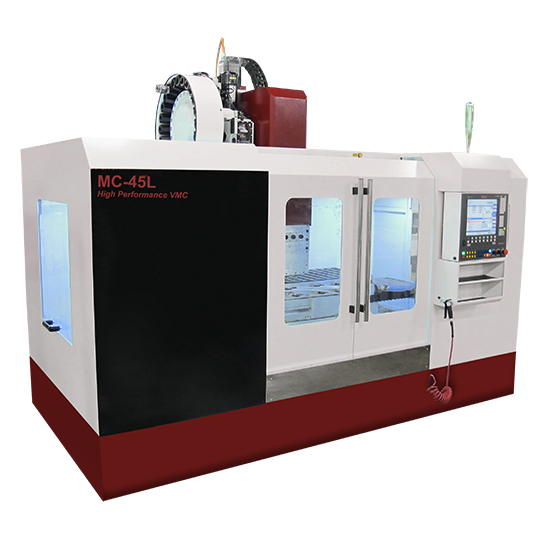

MC-45L

45” x 25” x 25”

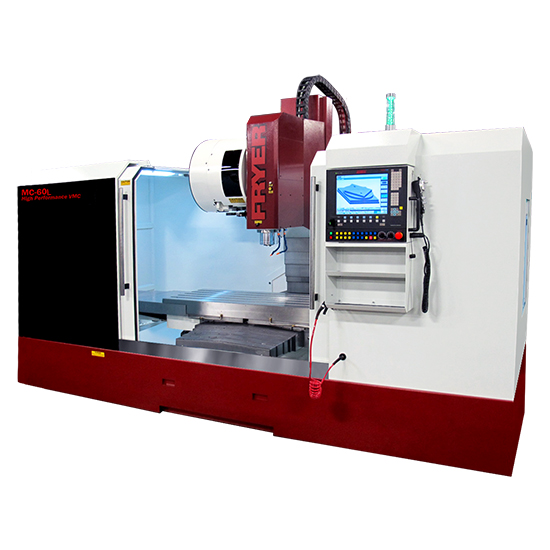

MC-60L

60” x 30” (35”)
x 28” (38”)


REQUEST INFO

Overview

The Fryer MC-L series features high speed and high performance. Standard features include high speed 30 tool ATC, a 10,000 RPM inline spindle, a high torque 30 HP motor and a super fast 1,450 IPM rapid feedrate. Combined with roller type linear ways and heavy duty FEA designed castings, the MC-L series is the ultimate compact VMC.

FEATURES

  • Roller type linear ways
  • Fast 1,450 IPM rapids
  • 30 tool arm type ATC
  • High torque inline 30 HP motor
  • 40 taper Big Plus – 10,000 RPM
  • Compact size

PRODUCTIVITY

  • Fast conversational programming
  • Fast set-up keys
  • Absolute encoders
  • Regenerative drive technology
  • Chip management system
  • Coolant thru spindle
Previous Next

CNC Control

Overview

The Fryer / Siemens 828-HS control is designed for ease of use in low volume toolroom and job shop facilities. Simple menu programming and fast set-up keys allow you make one-off parts in half the time of a manual machine. Multi mode operation allows you to use the machine manually, semi-automatic and full CNC mode. Canned cycles and graphic verify make set-up faster and easier.
cnc_control

FRYER-SIEMENS 828-HS CNC
  • Manual or CNC
  • Do-one mode
  • Teach mode
  • Conversational mode
TECHNOLOGY
  • Ultra reliable Siemens High Speed all digital control system
  • Regenerative drives save 40% electrical use
  • Digital drives provide better accuracy and surface finish
  • Absolute encoders never require you to ‘home’ machine

Geometry Creator
Enter part dimensions using the Simple Geometry Creator. The dimensions are drawn on the screen while you enter them and missing information is automatically calculated.
cnc_control
Pocketing Cycles
Choose from a wide variety of pocket shapes. Then answer basic questions about the depth of cut, tool type and finish stock allowance.
cnc_control

Drilling Cycles
Choose from a wide variety of drill cycles including drill, deep hole drill, peck drill, bore, rigid tap, rigid peck tap and more.
cnc_control
3D Graphic Simulation
The 828-HS uses sophisticated solid model graphic verification to accurately show what your part will look like BEFORE you cut it. Also choose from wireframe or multiview screen.
cnc_control
Please download our CNC Control brochure for more detailed information.
