TRT-250

TRT Series

Tilting Rotary Tables

  • Two axis motion for both 5 axis simultaneous and 4+1 motion
  • Large platter rotary tables with a small footprinte
  • Gear driven with high accuracy ring and worm gears
  • Available in sizes from 5” all the way to 32” diameter

TRT-120

6.75” Max Part Swing

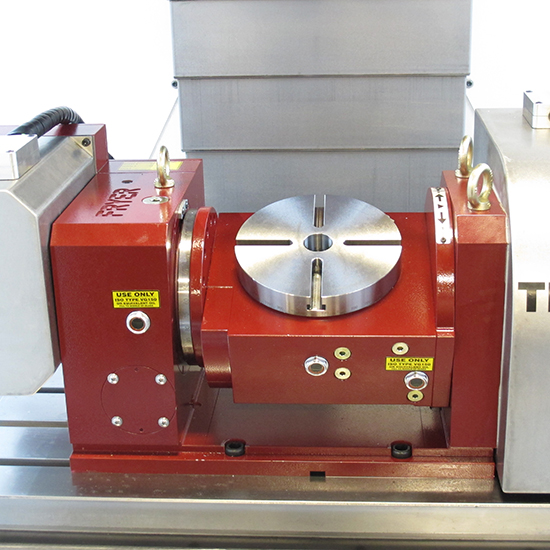

TRT-200

10.5” Max Part Swing

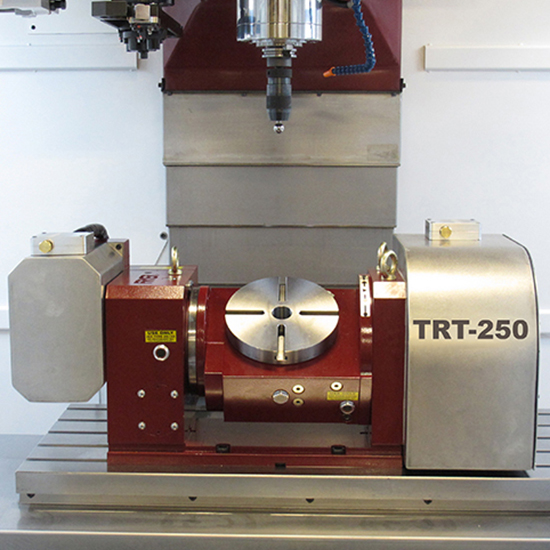

TRT-250

16.5” Max Part Swing


TRT-320

24” Max Part Swing

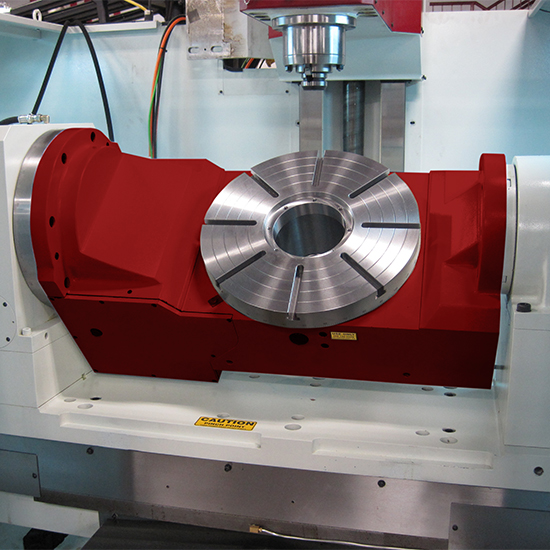

TRT-450

30.5” Max Part Swing


TRT-500

32” Max Part Swing

TRT-600

36” Max Part Swing


TRT-800

46” Max Part Swing

REQUEST INFO

Overview

The Fryer TRT series features two axis motion for both 5-axis simultaneous and 4+1 motion. The large platter rotary tables have a small footprint for addition to any VMC or HMC. Gear driven with high accuracy ring and worm gears and exceptional sealing for zero contamination. Available in sizes from 5” all the way to 32” diameter.

Features

  • Compact footprint
  • High accuracy
  • Large load capacity

Productivity

  • Sealed electrical area
  • Large swing capacity
  • Optional glass scales
