Traveling Column Horizontal Machining Center

horizontal_machining_centers

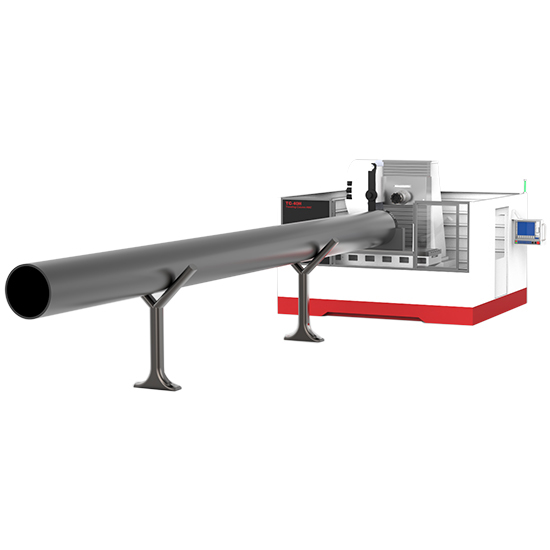

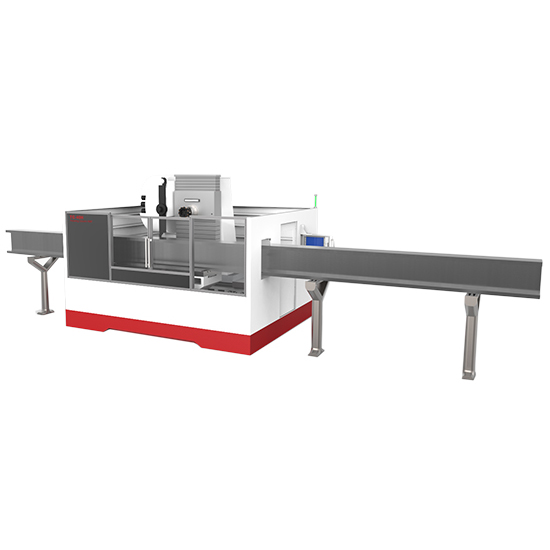

TC-40H

TC-H Series

Horizontal Traveling Column Design

  • Fixed table features high load capacity
  • Large X axis travel to 320"
  • Z axis travel of 24" or 32"
  • Fast set-up and operation

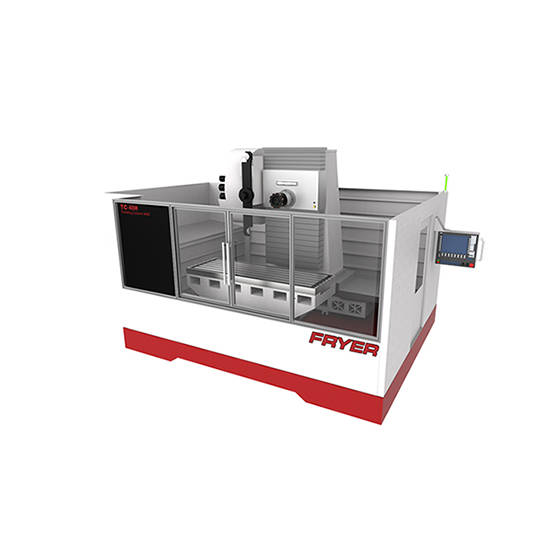

TC-40H

40" x 29" x 26"


TC-80H

80" x 24" x 24" (32")


TC-120H

120" x 24" x 24" (32")

TC-160H

160" x 24" x 24" (32")

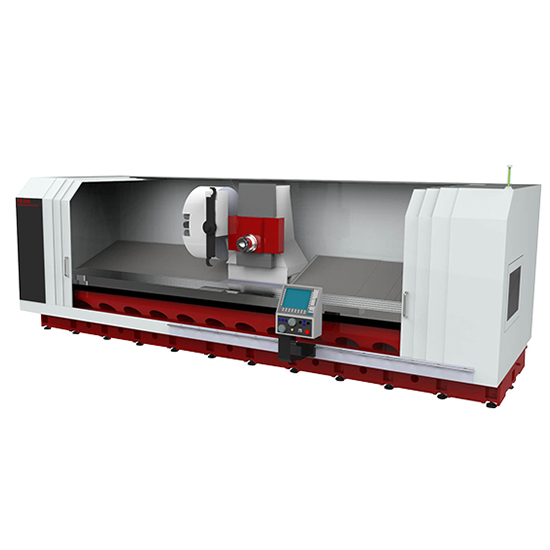

TC-240H

240" x 24" x 24" (32")


TC-320H

320" x 24" x 24" (32")

REQUEST INFO

Overview

The Fryer TC-H Series features a fixed table and traveling column design. It is equipped with a rugged 50 taper horizontal spindle featuring a high torque 40 HP spindle motor with 350 ft/lbs of torque. The fixed table allows table loads of more than 10,000 lbs. while offering versatility in part fixturing. Available in sizes ranging from 40" X travel all the way to huge 320" travel machine.

FEATURES

  • Innovative traveling column design
  • 40" to 320" X travel
  • Z travel of 24" or 32"
  • 40 HP 50 taper spindle
  • 1,000 IPM rapid feedrate
  • 24 or 40 tool ATC

PRODUCTIVITY

  • Fixed table with over 10,000 lbs. capacity
  • Available built-in rotary table
  • Simple menu or G code programming
  • Fast set-up keys
  • Open style semi-guarding or fully enclosed
  • Siemens or Fanuc CNC
Previous Next

CNC Control

Overview

The Fryer – Siemens Touch 2200 CNC provides world class technology and ultra-advanced features in an intuitive user interface. This state of the art platform provides the ultimate for 5 axis, high speed machining, horizontal machine and turning applications alike. Fast set-up cycles, one button hot keys and built in probe cycles speed the set-up process. Shop floor programming, G code programming, large program storage and Ethernet connectivity speed the programming process. 3D solid model graphic verification, handwheel run and easy interrupt speed the first article process.
cnc_control

FEATURES
  • One touch set-up cycles
  • Shop floor programming system
  • G code programming editor
  • Advanced graphic simulation
TECHNOLOGY
  • Advanced Digital Control System
  • Regenerative drive technology (saves 40% electric)
  • Absolute encoders – no homing needed
  • High accuracy contouring and surfacing

The tool management page stores your tool information in a graphical format. In addition, tools can be given tool numbers or actual names like .500 drill or .375 CBD end mill. Each tool can be managed for wear and switched automatically when the tool run time is reached.
cnc_control
The standard part probe cycles use a simple GUI to make part set-up simple. The cycles include edge find, part skew, pocket, boss and many more. The cycles can also be used to measure the part and display dimensions on the screen, much like a CMM.
cnc_control

The High-Speed Machining option lets you select 3 settings for the velocity, accuracy or surface quality to produce the workpiece at extremely high speed. Includes 500 block look ahead and 1 millisecond block processing.
cnc_control
After the part is programmed it can be simulated to show the operations and tool paths. Simulation will also work with programs brought in from a CAM system that were output in G code. Cycle time is displayed also.
cnc_control


Please download our CNC Control brochure for more detailed information.
