Ultra Accurate Slant Lathe

turning_centers
SL-12

SL Series

High Precision Production Turning

  • Ultra precision spindle cartridge
  • C1 class double nut ballscrews
  • 45° slant bed and box ways for greater rigidity
  • Perfect for shops requiring high rigidity, accuracy & ease of use

SL-6

6” Chuck
1.75” Bar Capacity

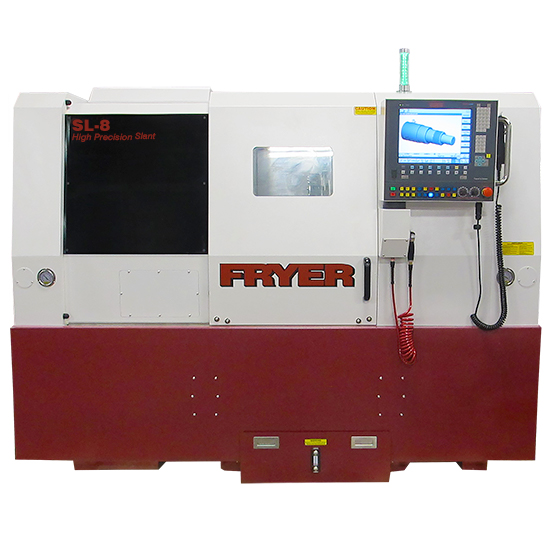

SL-8

8” Chuck
2” Bar Capacity

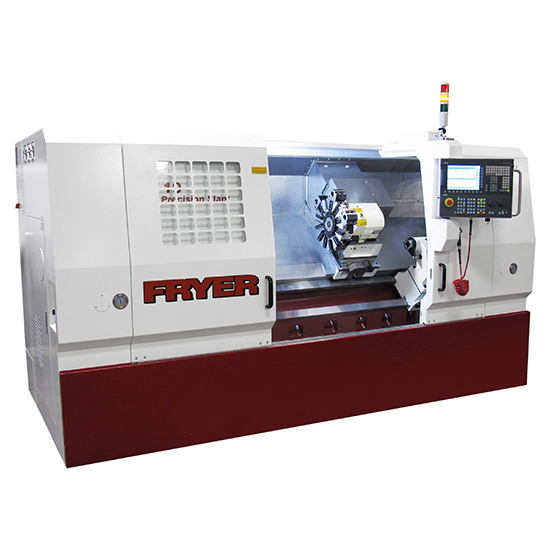

SL-10

10” Chuck
3” Bar Capacity


SL-12

12” Chuck
3.4” Bar Capacity


REQUEST INFO

Overview

The Fryer SL Series Slant Bed Lathes feature a true 45° slant bed and box ways for greater rigidity. An ultra precision spindle cartridge, C1 class double nut ballscrews and other premium components provide accuracy unmatched by any other lathe in this class. The Touch 2200 digital CNC is incredibly easy to use and features fast set-up and conversational programming. The SL series is the perfect choice for shops requiring high rigidity, accuracy and ease of use.

FEATURES

  • 45 degree one piece slant bed
  • Ultra precision world class construction
  • P4 NN roller spindle bearings
  • High precision hydraulic chuck
  • Box way construction
  • C axis and live tooling

PRODUCTIVITY

  • Fast set-up and programming system
  • Shop floor and G code programming
  • Unmatched accuracy
  • Tool and part probe system
  • Chip management system
  • Siemens or Fanuc CNC
Previous Next

CNC Control

Overview

The Fryer – Siemens Touch 2200 CNC provides world class technology and ultra-advanced features in an intuitive user interface. This state of the art platform provides the ultimate for 5 axis, high speed machining, horizontal machine and turning applications alike. Fast set-up cycles, one button hot keys and built in probe cycles speed the set-up process. Shop floor programming, G code programming, large program storage and Ethernet connectivity speed the programming process. 3D solid model graphic verification, handwheel run and easy interrupt speed the first article process.
cnc_control

FEATURES
  • One touch set-up cycles
  • Shop floor programming system
  • G code programming editor
  • Advanced graphic simulation
TECHNOLOGY
  • Advanced Digital Control System
  • Regenerative drive technology (saves 40% electric)
  • Absolute encoders – no homing needed
  • High accuracy contouring and surfacing

Tool setting is done in an easy to understand animated GUI. Tools can be set in manual mode or with an automatic tool setter for both X and Z axis.
cnc_control
Live tool part programming with C axis is easy with canned cycles helping you fill in information. Tell the cycle the part diameter and it will wrap it around the part to create pockets, drilling, engraving, hexes and more.
cnc_control

Single point threading for ID or OD is easy to do with the graphical menus. All standard threads in inch or metric are preconfigured, plus you have the ability to create nonstandard threads in right hand or left hand.
cnc_control
Standard 3D graphic simulation shows the part before it is cut. Part can be rotated and cut open to look inside to verify ID work. Cycle time based on speeds and feeds is also displayed.
cnc_control


Please download our CNC Control brochure for more detailed information.
