Compact Large Swing VTL

turning_centers
VT-40

VT Series

Vertical Turret Lathe

  • Innovative traveling column design
  • Large swing in a small foot print machine
  • Unique horizontal turret
  • Excellent clearance for long & short tools alike

VT-30

30” Swing


VT-40

40” Swing

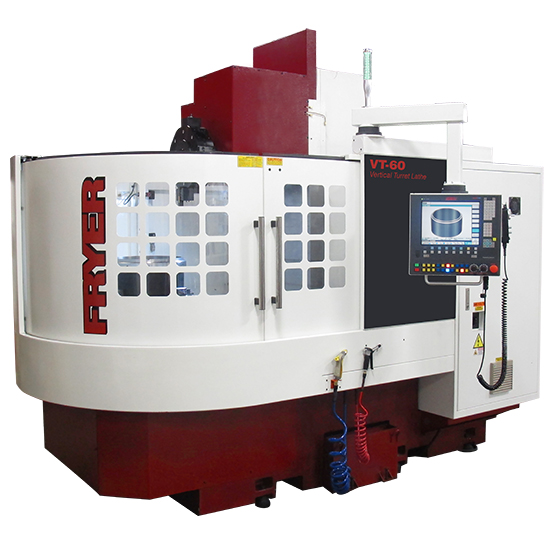

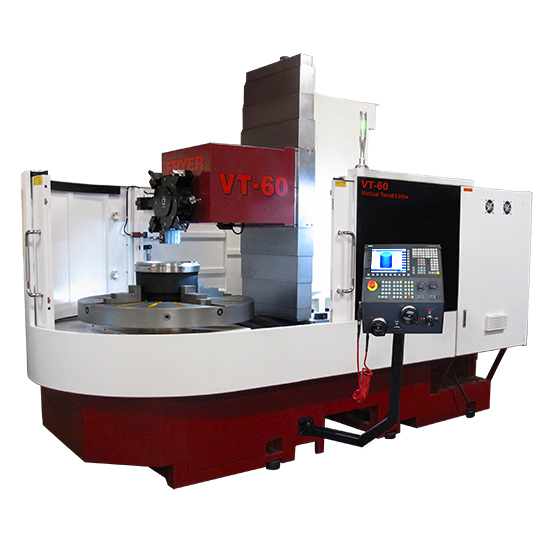

VT-60

60” Swing

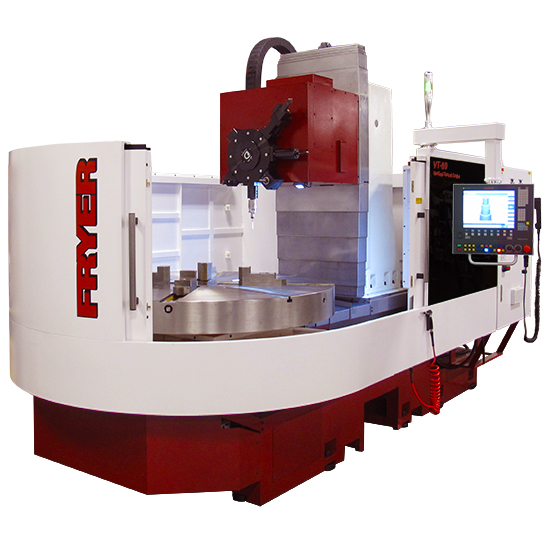

VT-80

80” Swing

REQUEST INFO

Overview

The Fryer VT Series is a compact, large swing vertical turret lathe. This series features an innovative traveling column design that allows a large swing in a small foot print machine. The unique horizontal turret features excellent clearance for long and short tools alike. The VT is available with full C axis contouring and positioning as well as a powerful live tool turret. Equipped with Fryer-Siemens Touch 2200 CNC control that features shop floor conversational programming, G code programming, 3D graphics and fast set-up cycles.

FEATURES

  • Compact design uses half the floor space
  • 30”, 40”, 60” or 80” swing models
  • 8 or 12 tool automatic turret
  • BMT-65 tooling for high rigidity
  • High torque geared headstock
  • C axis and live tooling

PRODUCTIVITY

  • Fast set-up and programming system
  • Shop floor programming
  • Excellent for small lot production
  • Small foot print
  • Traveling column provides improved clearance
  • Siemens or Fanuc CNC
Previous Next

CNC Control

Overview

The Fryer – Siemens Touch 2200 CNC provides world class technology and ultra-advanced features in an intuitive user interface. This state of the art platform provides the ultimate for 5 axis, high speed machining, horizontal machine and turning applications alike. Fast set-up cycles, one button hot keys and built in probe cycles speed the set-up process. Shop floor programming, G code programming, large program storage and Ethernet connectivity speed the programming process. 3D solid model graphic verification, handwheel run and easy interrupt speed the first article process.
cnc_control

FEATURES
  • One touch set-up cycles
  • Shop floor programming system
  • G code programming editor
  • Advanced graphic simulation
TECHNOLOGY
  • Advanced Digital Control System
  • Regenerative drive technology (saves 40% electric)
  • Absolute encoders – no homing needed
  • High accuracy contouring and surfacing

Tool setting is done in an easy to understand animated GUI. Tools can be set in manual mode or with an automatic tool setter for both X and Z axis.
cnc_control

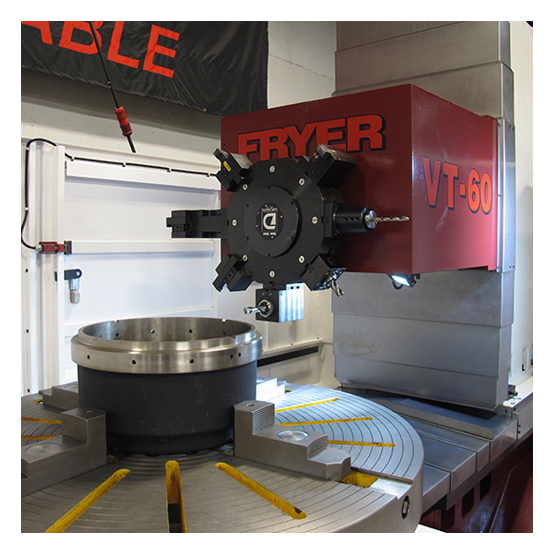

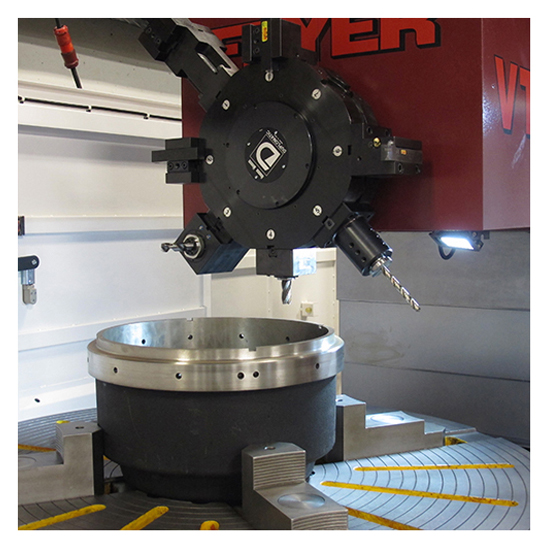

Live tool part programming with C axis is easy with canned cycles helping you fill in information. Tell the cycle the part diameter and it will wrap it around the part to create pockets, drilling, engraving, hexes and more.
cnc_control

Single point threading for ID or OD is easy to do with the graphical menus. All standard threads in inch or metric are preconfigured, plus you have the ability to create nonstandard threads in right hand or left hand.
cnc_control
Standard 3D graphic simulation shows the part before it is cut. Part can be rotated and cut open to look inside to verify ID work. Cycle time based on speeds and feeds is also displayed.
cnc_control


Please download our CNC Control brochure for more detailed information.
